| Place of Origin: | China |
|---|---|
| ชื่อแบรนด์: | XQ |
| ได้รับการรับรอง: | CE |
| Model Number: | XQGX-30A |
| Minimum Order Quantity: | 1 |
| ราคา: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（130*85*75cm 125KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Product main using: | filling and capping | Pump range: | 2-25ml |
|---|---|---|---|
| Power range: | AC 220V | Air pressure: | 0.43-0.6 MPa |
| Machine speed: | 0-23b/m | Warranty: | 12 Months |
| Filling material: | Liquid or oil | Bottle type: | Glass/Plastic |
Characteristic of Tabletop Using Semi-auto Liquid Bottle Filling And Capping Machine
The XQGX-30A is a high-performance rotary filling and capping machine designed for small round bottles, offering precision, efficiency, and hygiene. Here’s a breakdown of its key features:

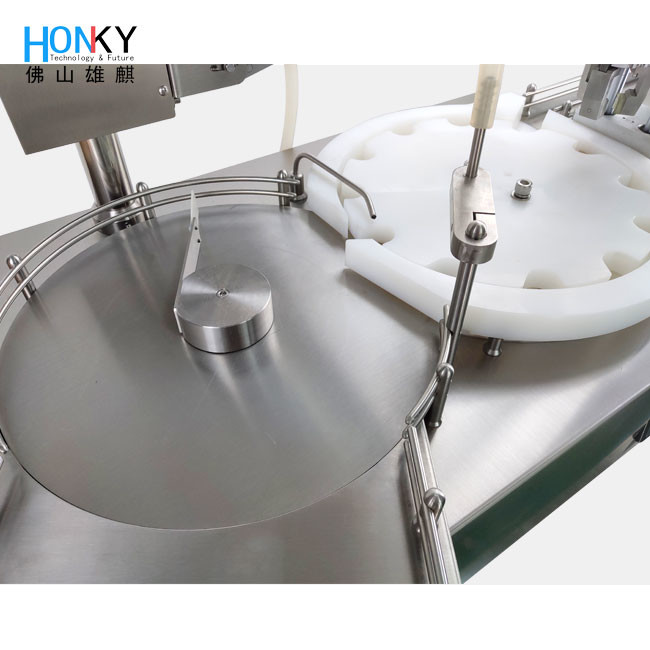

1. Rotary Table Design
-Optimized for small round bottles, ensuring smooth handling and processing.
-Compact footprint with efficient workflow for high-speed production.
2. High-Precision Filling System
-Uses ceramic piston metering pumps for exceptional accuracy (±0.5–1% deviation).
-Fast filling speed with adjustable volumes, suitable for a wide range of liquids (thin to viscous).
3. Automatic Bottle Unscrambling
-Integrated bottle unscrambler reduces manual labor—single-operator efficiency.
-Smooth bottle orientation and feeding for uninterrupted production.
4. Servo-Driven Capping Mechanism
-Gentle yet secure capping prevents cap damage (e.g., overtightening or misalignment).
-Compatible with various cap types (screw caps, snap caps, etc.).
5. Sanitary Construction
-Full stainless-steel (SS304/316) contact parts for hygienic, corrosion-resistant performance.
-Compliant with GMP, FDA, or CE standards (ideal for food, pharmaceuticals, cosmetics).
6. User-Friendly & Adjustable
-Easy parameter adjustments for different bottle sizes, fill volumes, and cap types.
-Low maintenance with durable, wear-resistant components.
Technical data of Tabletop Using Semi-auto Liquid Bottle Filling And Capping Machine
| Model | XQGM-30A | |||
| Filling range | 0.2-6ml | 1-12ml | 2-25ml | |
| Filling accuracy | ≤0. 5% | |||
| Bottle diameter | φ20 - φ45mm | |||
| Manufacturing speed | 12-22 PCS/min | |||
| Power | AC 220V 50-60Hz 600W | |||
| Air pressure | 0.4-0.5Mpa | |||
| Size of Host Machine | 1230*780*600(mm) | |||

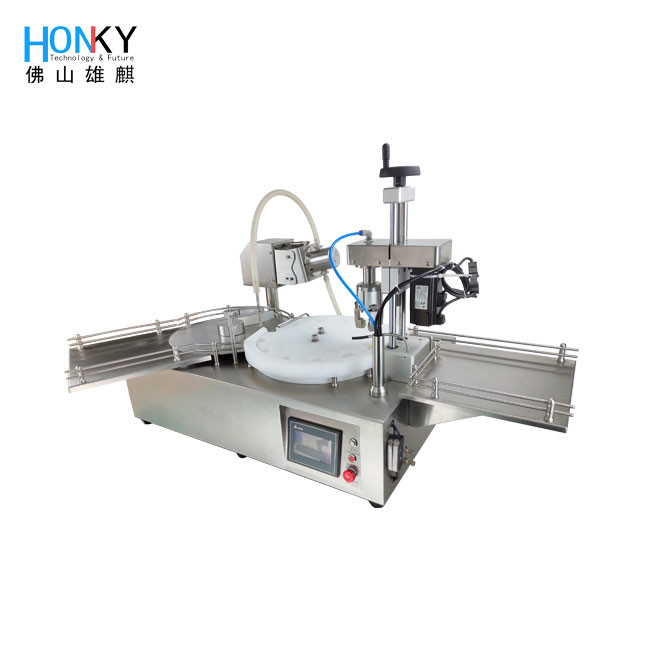

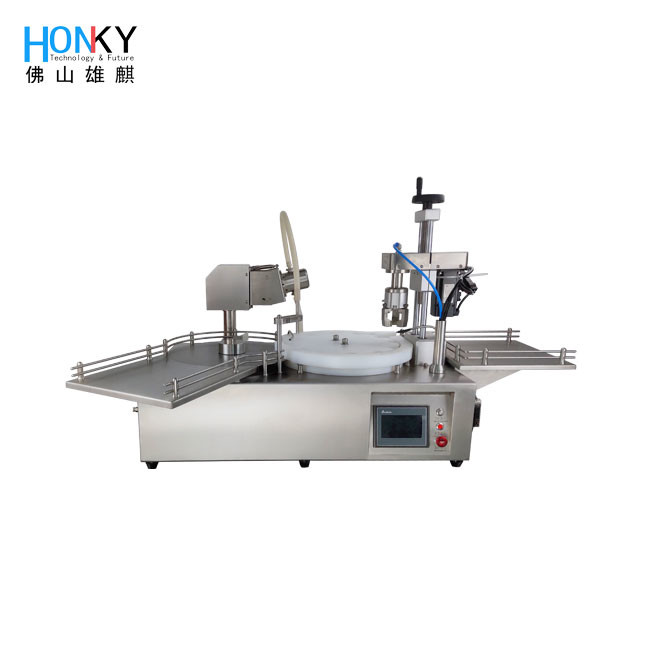

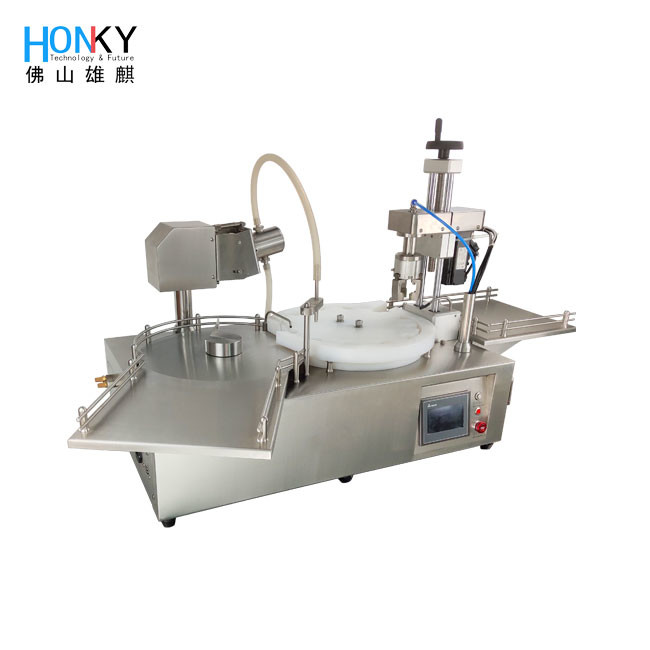

Product display of Tabletop Using Semi-auto Liquid Bottle Filling And Capping Machine
1500BPH Vial Semi-Automatic Desktop Filling And Capping Machine With Ceramic Pump For Essential Oil
This equipment has been tested to meet the requirements of GMP certification.

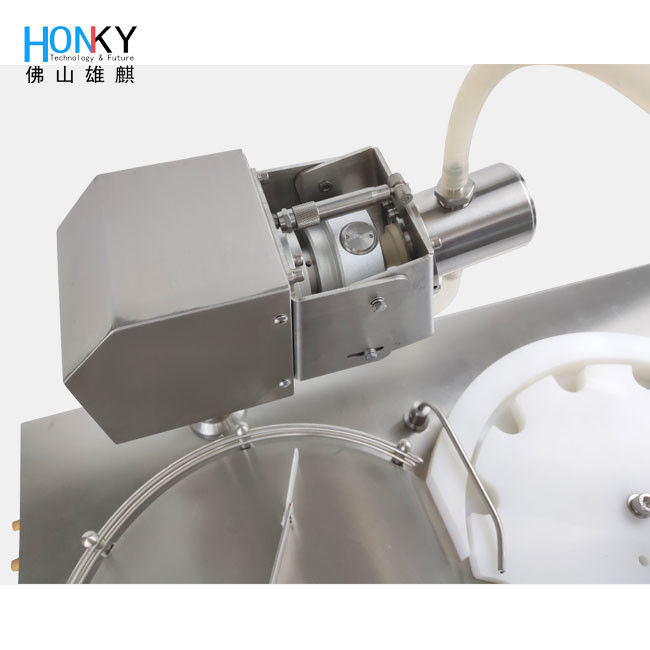

The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
The capping part adopts SERVO torsional screwing to ensure the tightness and no-damaging of the lid.
Fully desktop design to make operation easily.
