High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling

High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling
High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling
High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling
ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: XQ
ได้รับการรับรอง: CE
หมายเลขรุ่น: XQQGS
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: USD 2000 Per Set
รายละเอียดการบรรจุ: การบรรจุไม้
เวลาการส่งมอบ: 20 วัน
เงื่อนไขการชำระเงิน: t/t
สามารถในการผลิต: 100 ชุดต่อเดือน
ราคาถูกที่สุด ติดต่อตอนนี้
โหมดขับเคลื่อน: การควบคุมไฟฟ้าเต็ม บริการหลังการขาย: การสนับสนุนวิดีโอและชิ้นส่วนอะไหล่
ความเร็วปั๊ม: 40-50 ครั้ง/นาที ความดันอากาศ: 0.4-0.6mpa
พื้นที่แอปพลิเคชัน: อาหาร, ยา, สารเคมี, อาหาร มิติปั๊ม: 60*15*15 ซม.
เน้น:

40-50 times/min Ceramic Piston Filling Pump

,

0.4-0.6MPA Ceramic Filling Pump

,

High Precision Ceramic Plunger Pump

Food-Grade Ceramic Piston Filling Pump – Ideal for Syrups, Honey & Edible Pastes
Servo Driven High Precision Ceramic Piston Pump With Automatic Volume Adjusting For Cream Paste Jam Filling
Parameter of Servo Driven High Precision Ceramic Piston Pump
Model XQQGS-12 XQQGS-25 XQQGS-50 XQQGS-100
Pump head High purity ceramics
Filling accuracy ≦±0.5%
Filling range 1-12ml 2-25ml 5-50ml 10-100ml
Manufacturing speed 0-50 Bottle/min
Size of the pump 50*15*15 cm
Power AC 220V 50-60Hz 50W
Air pressure 0.4-0.6Mpa
Motor type Step motor/ servo motor
The ceramic plunger pneumatic pump assembly adopts a precision ceramic plunger design, which is suitable for the quantitative infusion of medium and high viscosity liquids, creams, and creams (1000-100,000CPS) and materials containing certain particles.
Key Features
The Food-Grade Ceramic Piston Filling Pump is an engineered precision solution designed specifically for the demanding requirements of the food and beverage industry. It excels in handling a wide range of viscous, sensitive, and valuable products—from golden syrups and delicate sauces to thick honey and coarse edible pastes—ensuring unparalleled accuracy, hygiene, and reliability.
1. Precision Engineered for Food & Beverage Excellence
At the heart of this pump is a unique rotary-to-linear mechanical system, where a ceramic piston rotates within a food-grade sleeve. The stroke length is precisely adjusted by varying the pump head angle, translating rotation into a highly accurate and repeatable linear displacement. This method eliminates the inconsistency and pulsation common in other pump technologies.
  • Gentle Product Handling: The smooth, continuous rotary motion ensures a steady, non-pulsating flow that preserves product integrity and prevents aeration—critical for maintaining the quality of honey, delicate emulsions, and fruit pulps.
  • Unmatched Accuracy & Repeatability: Achieve precise fills every time with a metering accuracy better than ± 0.5% and repeatability as high as ± 0.1%. This drastically reduces product giveaway, saving significant costs when filling high-value ingredients.
2. Built for Hygiene, Safety, and Durability
Constructed with fully food-compliant materials, this pump is designed for easy cleaning and long service life in challenging environments.
  • Advanced Ceramic Piston: The core of the pump features a highly wear-resistant and chemically inert ceramic piston. It is exceptionally smooth, preventing sticking and ensuring effortless cleaning even with sticky products like honey or chocolate.
  • Food-Grade Materials: Wetted parts are available in polished stainless steel (316L) and advanced food-grade polymers (such as PEEK and PTFE), offering excellent corrosion resistance and compatibility with a vast array of food products, including acidic and saline solutions.
3. Seamless Integration into Your Production Line
This pump is more than a component; it's a complete filling system ready for integration.
  • Smart Control Ready: Easily interfaces with modern PLCs and SCADA systems via analog signals or digital communication (e.g., RS485/Modbus) for seamless recipe changes, data logging, and production line synchronization.
  • Easy to Clean & Maintain: Its design supports quick disassembly for cleaning-in-place (CIP) or sterilizing-in-place (SIP) protocols, minimizing downtime and ensuring the highest standards of hygiene.

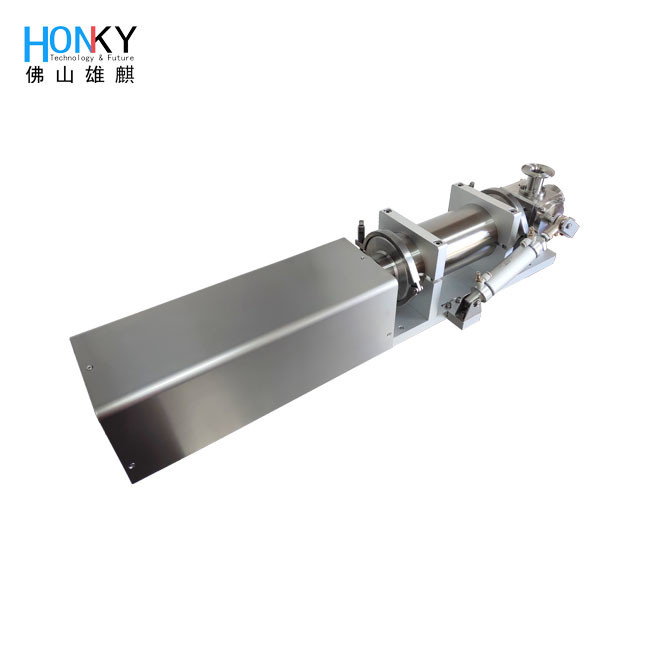

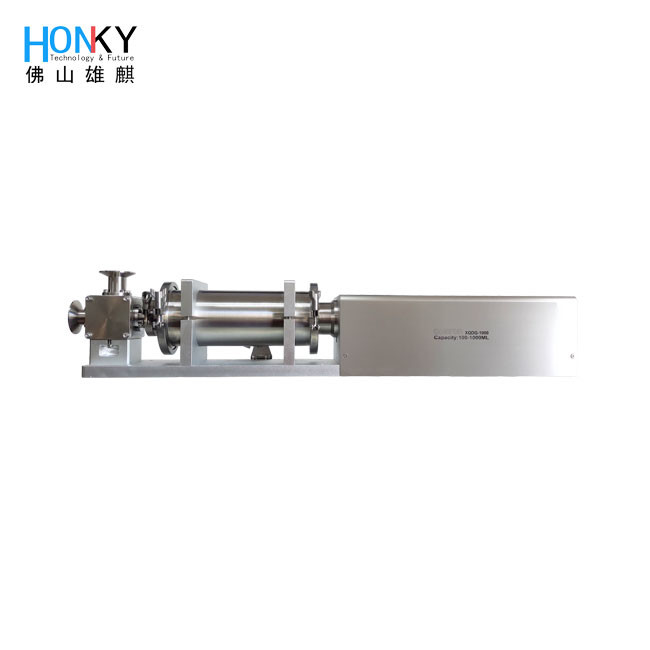

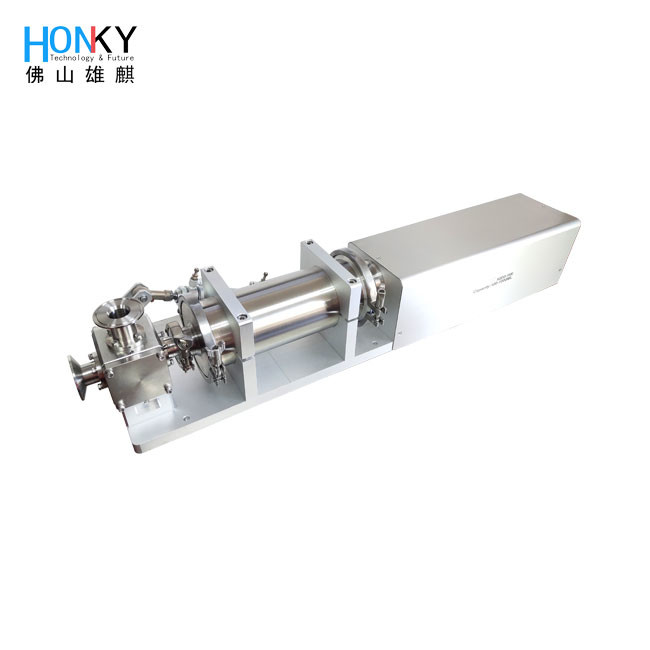

Product Display
High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling 0
High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling 1
Application Areas
  • ODM and OEM products design
  • Automatic manufacturing line design
  • Cosmetic product packing
  • Pharmaceutical and bio-reagent product packing
  • Laboratory Liquid dispensing
  • Lithium Battery Liquid dispensing
  • Ceramic pump and ceramic pump part design
  • Other area's material filling
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1. The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
